STEEL OIL CONDENSING BOILER

MINNY DUO / CAL

  • Reduced size
  • Stainless steel condenser
  • Under worktop installation option
  • Polypropylene flue ducts
  • Fully equipped
  • 2 models, MINNY DUO (Combi boiler) and MINNY CAL (Heating system boiler)
  • 2 Powers: 20 and 30 kW
OTHER TECHNICAL INFORMATION
DOCUMENTATIONCATALOGUE

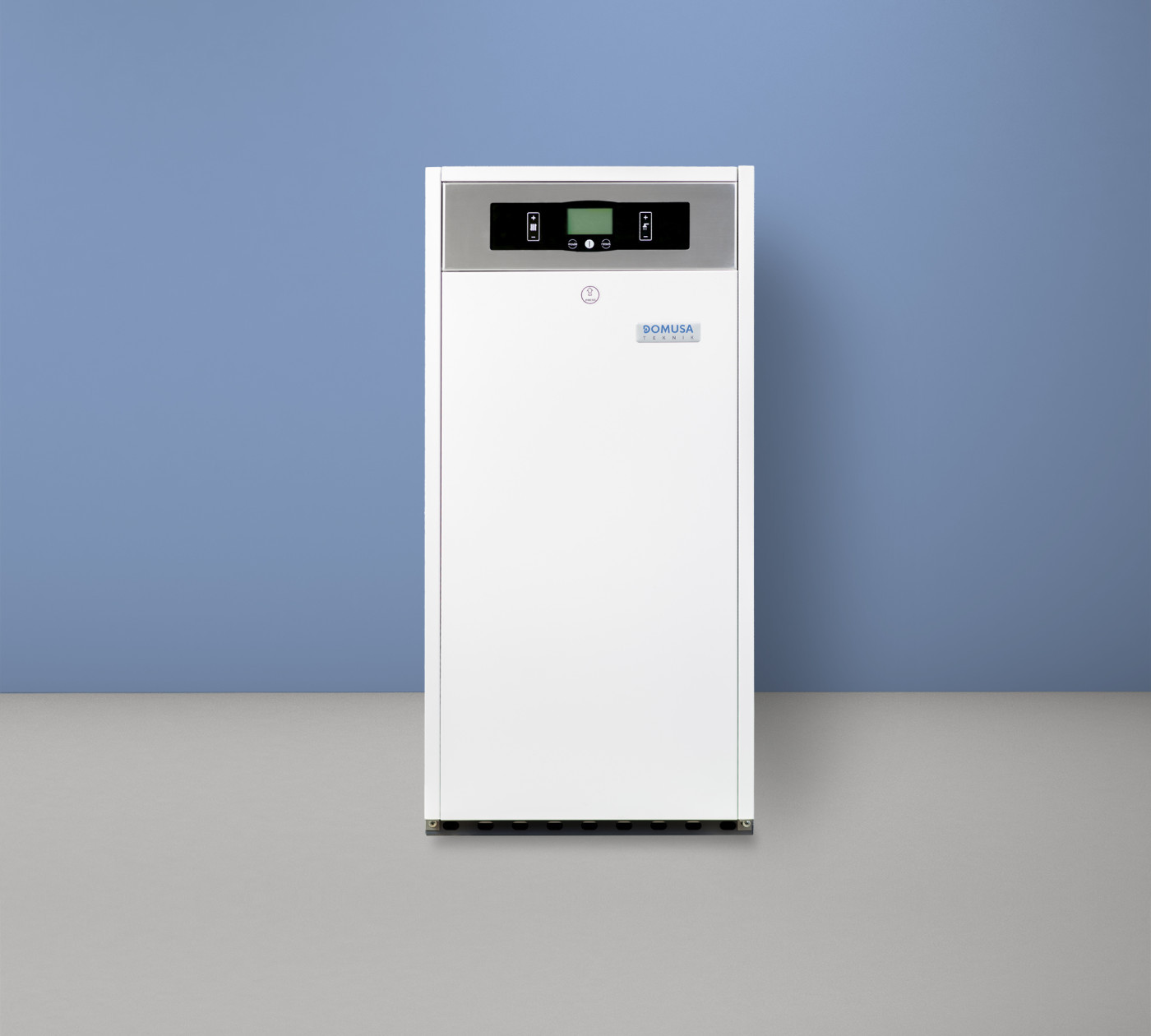

Imagen caldera gasoil minny duo cal
Icono etiqueta bajo nox

Advantages MINNY DUO / CAL

Low consumption and eco friendly

The MINNY boiler reduces the consumption of the system minimizing contaminating gases by using condensation technology. To take full advantage of the condensation effect the temperature of the combustion gases must be lowered below the dew point temperature. This reduction of gas temperature takes place in the stainless steel condenser.

Ease of installation

Its design is aimed to be functional for the professional. Being fully equipped and reduced in size allows it to be fitted in small spaces around the home, even under worktops. The ability to position the gas outlet at the back, at the top or side of the boiler and with a reduced diameter (80mm) makes it easily adaptable to any kind of installation.

Frontal access maintenance

The configuration and positioning of the boiler components have been designed to allow maintenance access from the front of the boiler thus reducing maintenance costs and making access easier. Maintenance and cleaning of the stainless steel condenser can be carried out from the front of the boiler without the need of any disassembly.

Ease of use

Our highly intuitive control panel provides safety and operational advantages. These advantages include lack of water, pump anti-block, anti-inertia and antifreeze alarm systems.

 Technical characteristics

MODEL HEAT OUTPUT
50°C/30°C
kW		 HEAT OUTPUR
80°C/60°C
kW		 ENERGY EFFICINCY CLASS
HEATING		 DHW EFFICIENCY CLASS
MINNY DUO 30 32,1 30 Icono etiqueta erp clase a
MINNY CAL 20 21,5 20 Icono etiqueta erp clase a -
MINNY CAL 30 32,1 30 Icono etiqueta erp clase a -
  MINNY DUO MINNY CAL
HEATING RETAINING VALVE
HEATING CIRCUIT PUMP
PRESSURE TRANSDUCER
SAFETY VALVE
AUTOMATIC AIR VENT
HEATING CIRCUIT EXPANSION VALVE
HEATING EXPANSION VALVE
FILLING VALVE
CONDENSING BOILER
CONDENSATE DRAIN
EMPTYING VALVE
BURNER
TELEPHONE RELAY CONNECTION
COIL HEAT EXCHANGER
DIVERTER VALVE
DHW FLOW RATE LIMITER
PUMP ANTI BLOCK SYSTEM
MINIMUM PRESSURE LIMITER
ANTI-FREEZE
DHW MODULATION
ELECTRIC CONNECTION FOR CYLINDER
  Including   Optional

MINNY DUO / CAL

Imagen dimensiones caldera gasoil minny duo cal

Technical

Etiqueta
ETIQUETA DE PRODUCTO ACS+CAL ELD
Etiqueta
ETIQUETA DE CONJUNTO ACS+CAL ELD
